Thermal imaging

Detection of heat leaks

We offer the detection of heat leaks using thermal imaging.

In addition to the infrared image, we also record a digital image, which allows us to combine them together, which significantly simplifies the analysis of infrared images. The temperature sensitivity is 0.1°C. The range of measured temperatures is -20°C to 250°C.

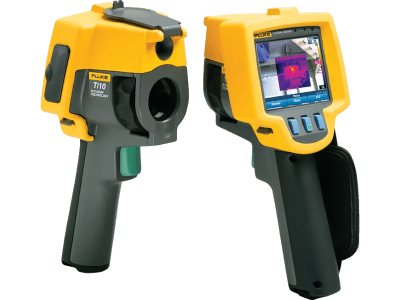

Fluke Ti10 thermal camera

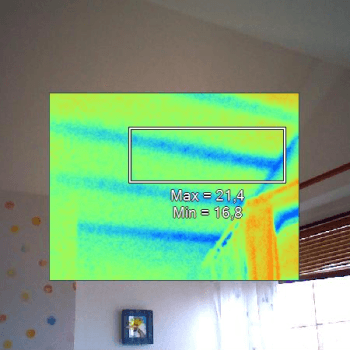

Example of measurement using a thermal camera

When to measure

Defects in building insulation or heating systems can be detected in the heating season, so in the winter period. Measurement using a thermal camera is also possible at night. The temperature difference between the outside and inside should be at least 15°C. Defects in electrical installations, photovoltaic panels, etc. can be detected throughout the year.

What is included in measurement using thermal imaging

  • Images of the outside and inside of the building, as well as requested objects in visible and infrared spectrum
  • Analysis of images (highlighting the warmest and coldest places or temperatures in any point of the image)
  • Preparation of a protocol in PDF format

What can be detected using thermal imaging

  • Defects in building insulation or poor insulation execution
  • Poor sealing of windows or doors
  • Thermal bridges
  • Hidden leaks in the building envelope
  • Inspection of construction work
  • Defects in floor heating
  • Defects in electrical installations - overheating of distribution boards, cables, circuit breakers, motors
  • Defects in photovoltaic and thermal panels
  • Defects in insulation of heating circuits and storage tanks
  • Problems in the chimney system
Example of measurement using a thermal camera

Examples of images

Showcase of thermal imaging resultsShowcase of thermal imaging resultsShowcase of thermal imaging resultsShowcase of thermal imaging resultsShowcase of thermal imaging resultsShowcase of thermal imaging results

Pricing

The pricing may be outdated, so take it more as an indicative and for the exact pricing contact us.

Item

Price

Family house (approximately 30 to 60 images depending on the need, protocol in PDF)

2000 Kč

Other objects, apartment buildings, commercial premises

upon agreement

Analysis of problems, recommendations for repairs and more

400 Kč/h

Transport

7 Kč/km, minimum 200 Kč
